XK3190A1+p

Weighing Indicator Built-in Printer

Application

  • Truck scale,
  • Bench scale,
  • Floor scale,

Connection : RS-232, Score board.

Category: Tag:
Guaranteed Safe Checkout
indicator-excellent-a1+p
Weighing Indicator Built-In Micro Printer

Simple weighing indicator for Truck scale, Bench scale, Floor Scale with dot matrix micro printer.

| Product Detail

indicator-XK3190A1+p

Introduction

Weighing Indicator XK3190-A1+p adopts A/D conversion Technology, with built-in printer. Widely applied in electronic bench scale, floor scale, and so on. weighing system equipped with 1- 4 load cell.

Function

  • With Built-in 16 row micro printer
  • Able to set up zero (auto/manual) range
  • With date and time display (note: no power no save)
  • Save accumulation result manually
  • Weighing data save protection in case of power off
  • Can choose one of 2 print out format by change the micro processor chip

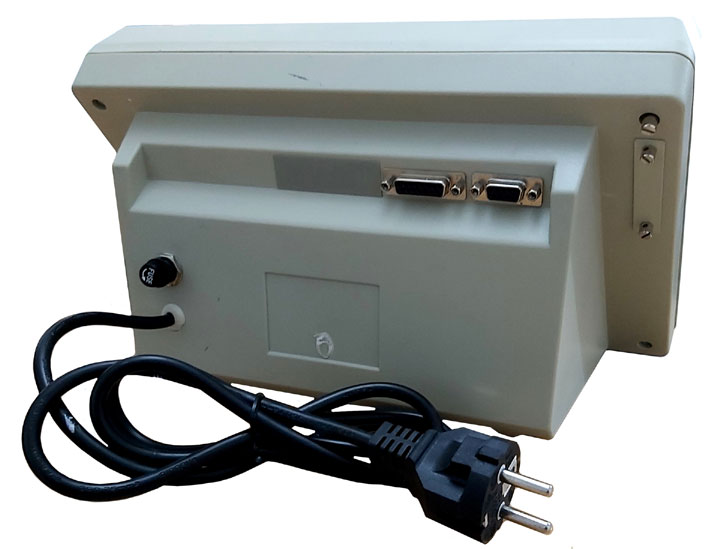

indicator-a1+p-(2)

Technical Parameter

  • A/D conversion method: Double integral
  • A/D conversion speed : ≥ 5 times/sec.
  • Input signal range: 1mV ~ 24mV
  • Input sensitivity: ≥ 1 μV/e
  • Load cell excitation: DC12V
  • Max.connection number of load cell: 4 at 350 ohm
  • Load cell connection mode: 4 wire
  • Verified counts: 3000
  • Division: 1/2/5/10/20/50/100 optional
  • Display: 7 bits LED, 7 status indications
  • Display range: -99990 ~ 99990 (d=10)
  • Clock: software clock, clock data lose on power off
  • Score board interface (standard) :
    – Serial sending signal by current loop with baud rate 600
    – Transmission distance: ≤ 50 meters
  • Communication interface (RS -232 C standard)
    – Serial communication interface with selectable baud rate by continuous sending method or on command method
    – Transmission distance: RS-232C ≤ 30 meters
    – Baud rate: 600/1200/2400/4800/9600
  • Power supply: AC 187~242V, 49 ~ 51 Hz

Print out Format

The printed output format can be used in various weighing applications

printout-format-a1P

Manual Calibration

XK3190 A1+p

Weighing Indicator Built-in Printer
